| Manufacturer | Vibro Meggitt |
| Series |
CA306 144-306-000-321 |
| Short Description |
Accelerometers with external charge amplifiers |
|
Origin |
Sweden |
|
Capacitance
|
50 pC/g (100 g)
|
| Dynamic calibration |
5 to 3000 Hz
|
|
Temperature error
|
−55 to 500 °C |
| Condition |
In Stock New & Original |
| Lead Time |
12 weeks |
|
Warranty |
12 monthes |
| Courier | Fedex/DHL/Your forwarder |
| Payment | T/T Multiple Currency Prepayment acceptable |
| Document | Available |
brand:
vibration

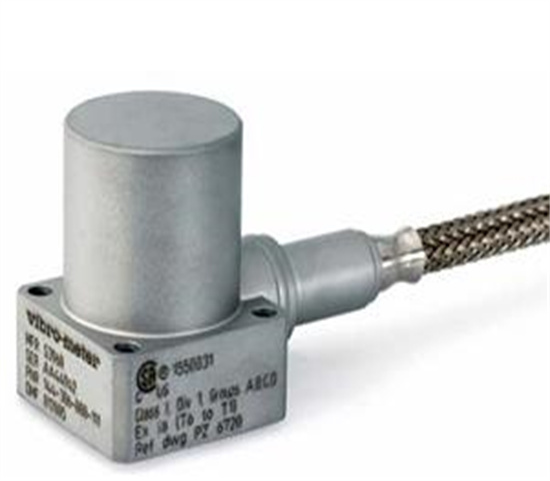

CA306 Vibration Acceleration sensor
CA306 144-306-000-321
FEATURES
Designed for high temperature gas turbine applications
Continuous operation up to 500°C
High output of 50 pC/g
Improved transverse frequency resonance
4-hole mounting according to ARINC Characteristic 554
Certified for use in potentially explosive atmospheres
Construction: Hermetically welded Inconel 600 superalloy
Frequency response:5 Hz to 3 000 Hz
GENERAL
Input power requirements : None
Signal transmission: 2 pole system insulated from casing, charge output
Signal processing：Charge amplifier
OPERATING
(at 23°C ± 5°C)
Sensitivity (at 120 Hz) : 50 pC/g ± 5%
Dynamic measuring range (random) : 0.01 g to 100 g peak
Overload capacity (spikes): Up to 200 g peak
Linearity : ±1% over dynamic measuring range
Transverse sensitivity : <5%
Resonant frequency: >15 kHz
Frequency response (typical) : ± 5% between 5 and 3 000 Hz (lower cut-off frequency is determined by
electronics used)
Internal insulation resistance : Min. 109 Ω pole-ground Min. 109 Ω pole-pole
ENVIRONMENTAL
Temperature range
Transducer and cable :-55°C to 500°C
(VM-Lemo connector)(-65°C to 125°C)
Temperature response : ± 10% between -55°C and 500°C
Shock acceleration : <1000 g peak (1 ms half sine wave) along sensitive axis
Base strain sensitivity : ≤10-4 g/με
Corrosion, humidity : Inconel 600, hermetically welded
Use in explosive atmospheres:
• EC type examination certificate KEMA 04 ATEX 1294 II 1 G (Zones 0, 1, 2) Ex ia IIC T6 to T510
ORRDERING INFORMATION
Part Number
(P/N)
Length L
in mm
144-306-000-111
3000 ± 100
144-306-000-121
6000 ± 150
144-306-000-131
9000 ± 200
144-306-000-141
12000 ± 200
