Vibro IQS452 204-452-000-011 IQS 452 Signal Conditioner


  • brand:

    vibration
  • product details

Vibro IQS452 204-452-000-011 IQS 452 Signal Conditioner

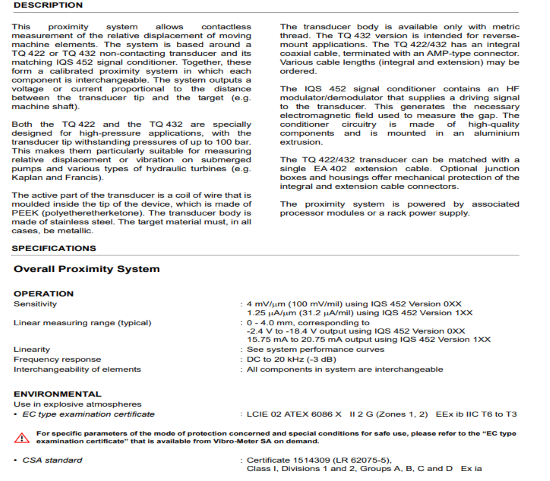

FEATURES

  • Designed for high-pressure applications
  • Certified for use in potentially explosiveatmospheres
  • Non-contacting measurement system based on eddy current principle
  • 5m and 10m systems
  • Temperature compensated system
  • Voltage or current output with protection against short circuits

CHARACTERISTICS
  • Measuring range: 4 mm
  • Transducer temperature range: -25°C to +140°C
  • Sensitivity: 4 mV/um or 1.25 uA/um
  • Frequency response: DC to 20 kHz (-3 dB)

GENERAL
Transducer input requirements: High-frequency power source via matching conditioner type1QS 452

ENVIRONMENTAL

  • Temperature ranges
  • Transducer: -25'C to +140'C with drift< 5%
  • Cable: -100°C to +200°C
  • Connector: -65'C to +85°C
  • Protection class: IP 68 according to lEC 529 and DIN 40050

Maximum pressure

  • Transducer tip: 100 bar (TQ 422 and TQ 432)
  • Transducer/cable assembly: 10 bar (with BOA option), 1 bar (without BOA option)
  • Transducer construction: Wire coil 8 mm, PEEK (polyetheretherketone) tip,encapsulated in stainless steel body (1.4435) with high temperature epoxy glue.
  • Integral cable: FEP covered 70 Ω coaxial cable, 3.6 mm
  • Option: BOA stainless steel armour sheathing
  • Connector: Miniature coaxial male connector type AMP 1-330 723-0
  • NB: This should be hand-tightened only when connecting





The following models are a system

TQ403 111-403-000-013 A1-B1-C036-D000-E010-F0-G000-H10

EA403 913-403-000-012

IQS450 204-450-000-001 A1-B21-H05-I0

IQS450 204-450-000-002-A1-B21-H05-I0

IQS450 204-450-00-002 A1-B21-H10-I0

IQS450 204-450-000-002-A1-B23-H05-I0

IQS450 204-450-000-002-A1-B23-H10-I0
