| Manufacturer | GE |
| Series |
Mark VI |
| Short Description |
Trip Emergency Terminal Card |
|
Origin |
US |
|
HS Code |
IS200TREGH2B |
| Operating temperature |
-25°C to +70°C (industrial wide temperature range) |
| Packing Weight | 450g |
| Condition |
In Stock New & Original |
| Lead Time |
3-7 days |
|
Warranty |
12 monthes |
| Courier | Fedex/DHL/Your forwarder |
| Payment | T/T Multiple Currency Prepayment acceptable |
| Document | Available |
brand:

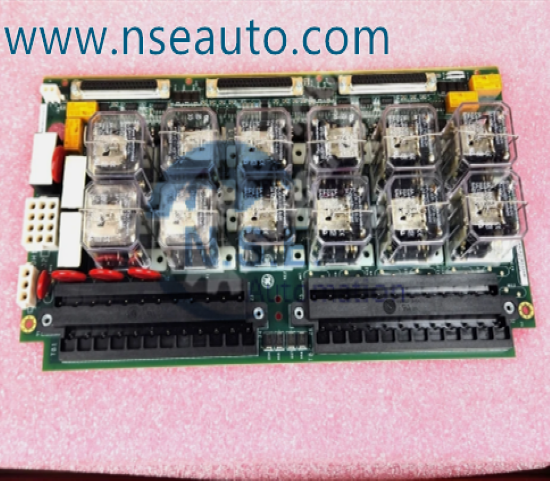

General ElectricGE IS200TREGH2B
Trip Emergency Terminal Card
IS200TREGH2B is a dedicated terminal board for General Electric (GE) Mark VI series industrial control systems, designed for gas turbine emergency trip protection. The module controls three emergency trip solenoid valves through 12 sets of redundant relays (6 sets each for main and backup), with a rated voltage of 24VDC, an operating temperature range of -40°C to +85°C, IP20 protection level and UL/CE/ATEX certification, and supports DIN rail installation. It is widely used in key equipment safety protection systems in the fields of power, petrochemical, etc.
Input typeBasic parameters
Product model: IS200TREGH2B (GE Mark VI series component)
Rated voltage: 24VDC ±10% (typical industrial control voltage)
Maximum load current: 5A/channel (relay contact capacity)
Relay configuration
Number of relays: 12 (6 main + 6 standby redundant design)
Contact type: silver alloy contact (10^6 mechanical life)
Response time: <10ms (typical value of mechanical relay)
Environmental adaptability
Operating temperature: -40°C ~ +85°C (compliant with IEC 60068-2 standard)
Protection level: IP20 (installation requirements in control cabinet)
Safety certification: UL 508 / CE / ATEX Zone 2 (hazardous area certification)
Interface characteristics
Control signal: optocoupler isolated digital input (24VDC level)
Status feedback: dry contact signal output
Mechanical characteristics
Installation method: DIN rail installation (compliant with EN 60715 Standard)
Dimensions: 200mm(W) × 120mm(H) × 60mm(D) (including terminal block)
Additional shielding measures are required in strong electromagnetic environments
Key Features Analysis
Redundant Power Supply Architecture
Dual power input design (main/backup), hot-swap switching supported
Each solenoid valve drive circuit contains 2 sets of independent relay contacts in parallel
Safety interlock mechanism
Built-in Watchdog circuit (500ms timeout detection)
Possess contact welding detection function (monitored by auxiliary contacts)
Diagnostic function
LED status indication (power/fault/action status)
Support MODBUS RTU protocol communication (through expansion module)
Application Restriction Description
Solenoid valve drive circuit needs to be configured with 1A fast-blow fuse (user side)
It is recommended to use with GE DS200 series I/O controller
It is forbidden to use in areas with an altitude of more than 2000m (requires capacity reduction)
