CP 216
Piezoelectric pressure transducer
Application : Dynamic pressure monitoring over a wide temperature range, requiring high reliability
Origin: Sweden
Condition: New and in stock
Lead time : 1-2 weeks
The use of man-made piezoelectric material in the
CP 216 a compression-mode dynamic pressure
transducer produces an extremely stable device.
The CP 216 is designed for long-term monitoring or
development testing over wide temperature ranges in
extreme environments, such as gas turbines.
item no.:
CP216 Piezoelectriclead time:
1-2 weeksproduct orgin:
Swedenbrand:
vibrationshipping port:
xiamenpayment:
T/T and Western Unionmarket price:
$900CP216 Piezoelectric pressure transducer
CP 216 143-216-000-251
More details , please contact with sales23@htechplc.com
FEATURES
» From the Vibro-Meter® product line
» Extreme temperature capability: −70 to 520°C
» High-pressure capability: up to 350 bar
» Pressure sensitivity: 200 pC/bar
» Frequency range: 2 Hz to 15 kHz
» Internal case insulation
» Certified for use in potentially explosive atmospheres
APPLICATIONS
» Dynamic pressure monitoring over a wide temperature range, requiring high reliability
DESCRIPTION
The use of man-made piezoelectric material in the CP 216 a compression-mode dynamic pressure transducer produces an extremely stable device. The CP 216 is designed for long-term monitoring or development testing over wide temperature ranges in extreme environments, such as gas turbines.

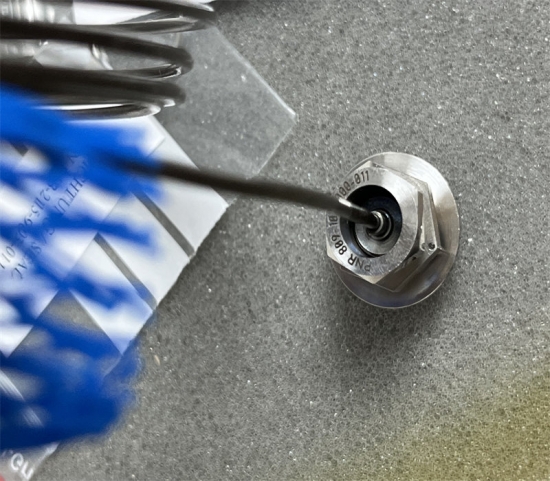

The transducer is fitted with an integral mineral
insulated cable (twin conductors) that can be
terminated with either a LEMO connector or a hightemperature connector developed by Vibro-Meter.
Cable assemblies are available to connect the
transducer to an IPC 704 signal conditioner.
