Bently Vibration Transmitter 990-10-xx-03-00


  • product orgin:

    USA

  • brand:

    Bently Nevada
  • product details


Bently Vibration Transmitter 990-10-xx-03-00

  • The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system.
  • The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).
  • The 990 transmitter provides the following notable features: Integrated Proximitor Sensor requires no external unit Non-isolated "PROX OUT" and "COM" terminals plus a coaxial connector to provide a dynamic vibration and gap voltage signal output for diagnostics.
  • Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment.
  • Test Input pin for quick verification of loop signal output,using a function generator as the input.
  • A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or looseconnection.
  • Choice of DIN-rail clips or bulkhead mounting screw sas standard options simplifies mounting.
  • The 990 Vibration Transmitter's "Prox Out" coaxial connector provides a non-isolated dynamic transducer signal for machinery diagnostics. You can connect this signal directly to battery-powered or isolated test equipment to diagnose machinery problems.
  • However, since the "PROX OUT" signal is not isolated from the 4 to 20 mA loop signal, an interface is available (and strongly recommended) for signal isolation. The 990/991 Test Adapter conditions the 990 Transmitter's "PROX OUT" signal for use with acpowered test equipment. It also inverts and isolates the 990's transducer signal,making it suitable for equipment such as oscilloscopes and analyzers, and preserving industrystandard conventions for signal polarity. We strongly recommend the use of this test adapter for all applications to maintain

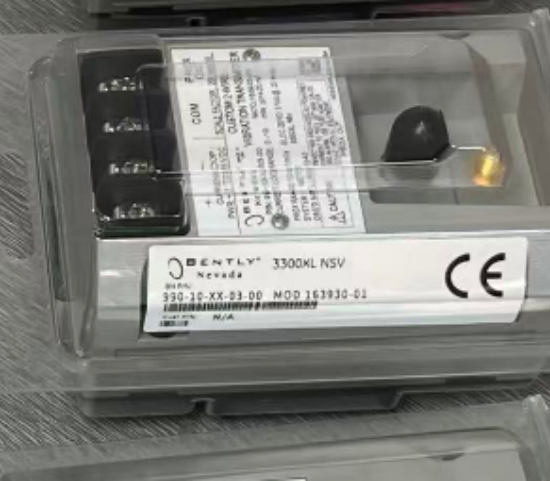

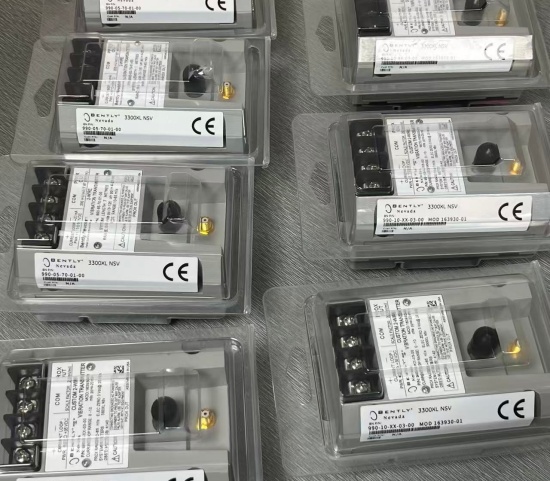

Picture of 990-10-XX-03-00
