330709-000-080-10-02-00 Bently Nevada11MmProximity Probe


  • product orgin:

    USA

  • brand:

    Bently Nevada
  • product details


330709-000-080-10-02-00 Bently Nevada11MmProximity Probe


  • Product Type: Classified as an 11mm eddy current sensor, it adopts non-contact measurement to monitor critical parameters (shaft vibration, displacement) of rotating mechanical equipment, and works as a key part of the 3300 monitoring system.
  • Specifications:The 3300 XL 11 mm probe comes in several diferent probe housing configurations including 1/2-20, s/.-18, M14 X 1.5, and M16 X 1.5 shielded and unshielded probe threads. The 3300 XL 11 mm reverse mountprobe comes standard with either */-24 or M10 X 1 threads. All transducer system components have gold.plated brass ClickLoc connectors. The ClickLoc connectors lock into place, preventing the connection fromloosening. The patented TipLoc molding method provides a robust bond between the probe tip and theprobe body. The probe cable is secured to the probe tip using our patented CableLoc design providing atensile strength of 330 N (75 lb).
  • Functional Features: The non-contact measurement principle avoids wear on the measured shaft, ensuring high measurement accuracy and strong stability. It is compatible with a power supply of -17.5Vdc to -26Vdc (without isolation barrier), consumes 12mA of current, and its signal output can accurately reflect the dynamic changes of the shaft.
  • Application Scenarios: The Bently Nevada 330709-000-080-10-02-00 is an advanced proximity measurement and vibrationmonitoring system designed for use on industrial machinery. lt offers accurate performance with a ruggeddesign, ensuring reliable measurements even in harsh operating environments. This system is particularlywell-suited for applications on rotating machinery where vibration and shaft position monitoring are cruciafor performance and predictive maintenance.

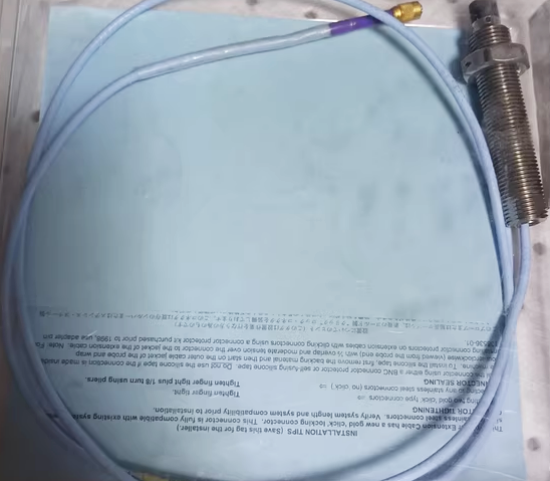

Picture of 330709-000-080-10-02-00
