DCS SYSTEM ABB ABB PHARPSCH100000 bailey Power Supply Chassis

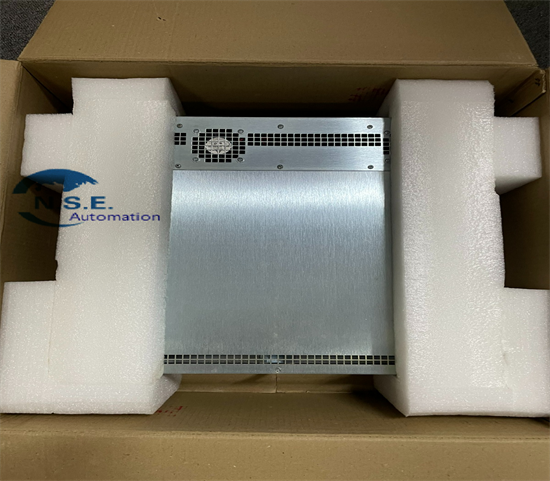

ABB PHARPSCH100000 bailey Power Supply Chassis


PHARPSCH100000
Origin Sweden
Type Power Supply Chassis
Weight 4kg



  • brand:

    ABB
  • product details

ABB PHARPSCH100000 bailey Power Supply Chassis



PHARPSCH100000 is a power supply chassis manufactured by ABB, belonging to the Modular Power Supply System III (MPS III) series. Below is a detailed introduction to it:

1. Basic Information

  • Product Number: PHARPSCH100000
  • Type: Power Supply Chassis
  • Country of Origin: Sweden

2. Performance Parameters

  • Input Voltage: 380 - 480VAC, 3-phase
  • Output Voltage: 24VDC, 48VDC, or 110VDC
  • Output Power: Up to 100kW
  • Efficiency: Up to 96%
  • Operating Temperature: 0 to 50°C
  • Cooling Method: Air Cooling
  • Dimensions: 550mm (Width) x 230mm (Height) x 540mm (Depth)

3. Key Features

  • Expandability: This chassis can accommodate up to 12 MPS III power supply modules, with a total output power of up to 120kW, enabling flexible expansion according to actual needs.
  • High Efficiency: The MPS III power supply modules boast an efficiency of up to 96%, which helps reduce energy costs.
  • High Reliability: The design of the MPS III system complies with the highest standards for reliability and performance. Moreover, the power supply modules support hot swapping, allowing replacement while the system is in operation, which further enhances the system's reliability and availability.
  • Easy Maintenance: All components of the PHARPSCH100000 chassis are easily accessible, facilitating convenient maintenance.

4. Application Fields

It is compatible with ABB's Symphony Harmony Infi 90 series control systems and is suitable for various fields requiring stable power supply, such as industry, data centers, and medical care.
