DCS SYSTEM ABB ABB DI810 3BSE008508R1 Digital Input Module

ABB DI810 3BSE008508R1 Digital Input Module

  • product orgin:

    Sweden
  • brand:

    ABB
  • product details


ABB DI810 3BSE008508R1 Digital Input Module

  • The ABB DI810 (part number 3BSE008508R1) is a practical 16-channel digital input module, tailor-made for picking up 24V DC switch signals—think the on/off signals from limit switches, proximity sensors, or pushbuttons you’d find on factory floors. A big plus for wiring safety and signal stability is its isolation design: the 16 channels are split into two groups of 8, each with 500V AC isolation between groups. That means if one group has a voltage spike or wiring issue, it won’t drag down the other group—super helpful when you’re troubleshooting, since you can narrow down problems to one half instead of all 16 channels.
  • When it comes to input performance, it’s consistent and reliable. Each channel draws about 6mA of current at 24V, which is low enough that you won’t overload your power supply even with all 16 channels in use. The input impedance is at least 20kΩ, so it won’t pull too much current from the connected switches, and the 1ms filter time helps cut out random electrical noise—no false signals from nearby motors or drives messing up your readings. Plus, it handles up to 100kHz input frequency, so even fast-switching signals (like from high-speed conveyors) get captured accurately.
  • Power-wise, it keeps things simple: it runs on a standard 24V DC industrial power supply, and uses less than 5W total. That’s easy to integrate into existing power setups—no need for a special high-wattage supply. And it’s built to tough out harsh industrial environments: it works from -40°C (perfect for cold storage or outdoor cabinets) up to +70°C (no sweat in hot factory halls), and stores safely from -40°C to +85°C. Humidity? It handles 5% to 95% without condensation, so damp areas like food processing plants or water treatment facilities won’t cause issues.

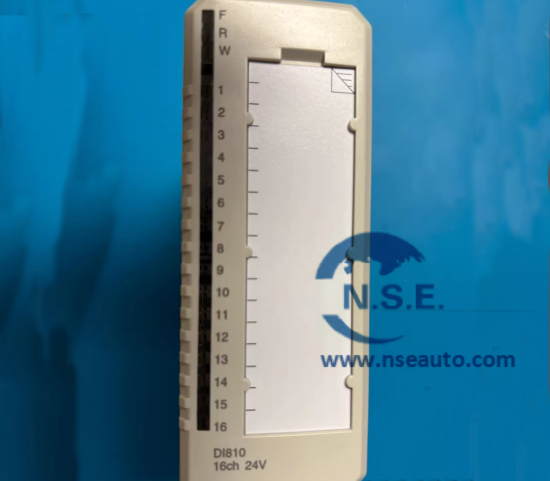

Picture of DI810 3BSE008508R1
