Vibro-Meter CA202 144-202-000-225 Piezoelectric Accelerometer

  • product orgin:

    Sweden

  • brand:

    vibration
  • product details


Vibro-Meter CA202 144-202-000-225 Piezoelectric Accelerometer

  • The CA202 (model 144-202-000-225) is an industrial piezoelectric accelerometer designed and produced by Vibro-Meter, now part of the Meggitt Group. This is a standard‑version unit with an 11‑meter integrated low‑noise cable, intended for high‑precision, high‑reliability vibration monitoring in non‑hazardous, non‑explosive environments.
  • As a key front‑end sensor for vibration monitoring systems, the CA202 uses the established shear‑mode piezoelectric principle and features a heavy‑duty, fully sealed stainless‑steel construction built to withstand severe industrial conditions. Its main strengths include a wide operating temperature range, strong resistance to environmental interference, high sensitivity, and stable long‑term performance. It provides accurate and consistent vibration data for critical rotating machinery such as power plant steam turbines, petrochemical compressors, and heavy manufacturing equipment, making it well‑suited for predictive maintenance, equipment protection, and reducing unplanned downtime.
  • The sensor’s symmetric shear‑mode sensing element, internal case isolation, and differential output design deliver excellent immunity to electromagnetic interference and ground loop noise. The 11‑meter integrated cable offers greater installation and routing flexibility on large machines, removes the need for field‑installed connectors, and helps maintain stable, reliable signal transmission.

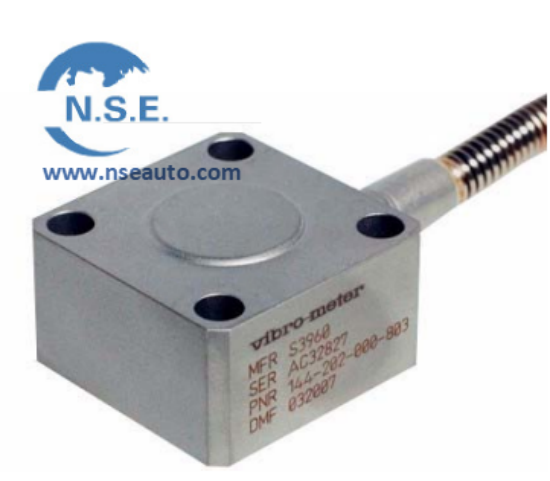

Picture of 144-202-000-225

Related Product,welcome to inquire:

sales23@htechplc.com /+86 18150137569(whatsapp/wechat)

Ms.kelly stand by to quote you !

CA202 144-202-000-203 CA202 144-202-000-205
CPUM 200-595-067-114 CPUM 200-595-043-114
IOC4T 200-560-000-114 MPC4 200-510-076-114
CA202 144-202-000-215 CA202 144-202-000-225
CP232 143-232-000-222 CA201 144-201-000-222
CPUM 200-595-046-114 MPC4 200-510-074-114
CA134 144-134-000-612 CP237 143-237-000-012
TQ402 111-402-000-012 TQ402 111-402-000-013


hot tags : CA202 144-202-000-203 CA202 144-202-000-215 CA202 144-202-000-106 CA202 144-202-000-205 CA201 144-201-000-222 CA134 144-134-000-612
