| Manufacturer | Vibro Meggitt |
| Series |

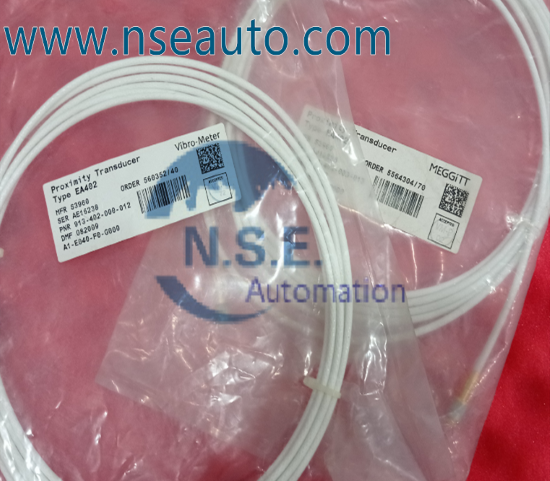

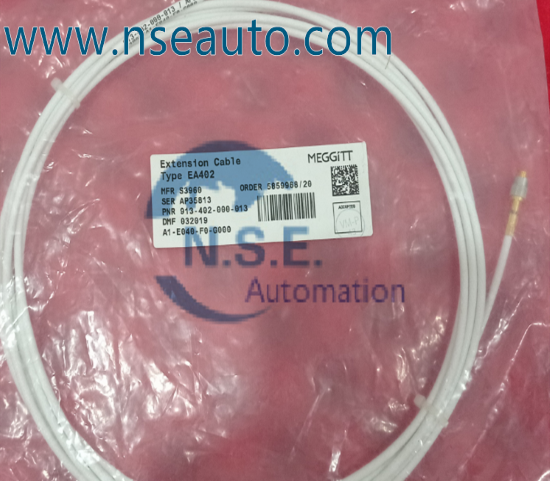

EA402 913-402-000-012 |
| Short Description |
extension cable |
|
Origin |
Sweden |
|
Measurement range
|
5 mA (corresponding to 2 or 4 mm)
|
| Dynamic calibration |
5 to 3000 Hz
|
|
Temperature ranges
|
−40 to 195 °C |
| Condition |
In Stock New & Original |
| Lead Time |
12 weeks |
|
Warranty |
12 monthes |
| Courier | Fedex/DHL/Your forwarder |
| Payment | T/T Multiple Currency Prepayment acceptable |
| Document | Available |
brand:
vibrationVibration EA403 913-403-000-012 913-402-000-013 Extension Cable
EA403 913-403-000-012
The TQ402 and TQ412 transducers can be matched with a single EA402 extension cable to effectively lengthen the front-end. Optional housings, junction boxes and interconnection protectors are available for the mechanical and environmental protection of the connection between the integral and extension cables.
I. Core Technical Specifications
Interface Compatibility
Designed specifically for connecting non-contact sensors (such as the TQ402/TQ412) with signal conditioners (such as the IQS900), it utilizes standardized industrial interfaces.
Supporting multi-module expansion, it can be adapted to sensors such as the TQ403 to build a complete displacement measurement system.
Electrical Performance
High-precision signal transmission ensures displacement measurement errors are kept to the micron level.
Anti-electromagnetic interference design makes it suitable for complex electromagnetic environments in industrial environments.
Mechanical Characteristics
The cable features a flexible shielded sheath, offering bending and abrasion resistance, making it suitable for dynamic connections in moving mechanical components.
Typical lengths range from 1 to 5 meters (refer to the product manual for specific lengths).
II. Product Features
Non-contact Measurement Advantages
Electromagnetic induction enables contactless measurement, eliminating mechanical wear and extending equipment life.
Suitable for harsh operating conditions such as high temperature and high vibration, such as real-time monitoring of turbines and rotating machinery.
Modular Design
Plug-and-play construction simplifies installation and maintenance. Supports parallel connection of multiple sensors to meet the multi-point monitoring needs of complex systems.
Environmental Adaptability
Operating temperature range: -40°C to +85°C (specific model required).
Protection rating: IP67 (dustproof and waterproof), suitable for harsh industrial environments.
III. Typical Application Scenarios
Generator shaft displacement monitoring
Aircraft engine vibration analysis
Railway transit wheelset dynamic detection
ORRDERING INFORMATION
Part Number
(P/N)
Length L
in mm
144-306-000-111
3000 ± 100
144-306-000-121
6000 ± 150
144-306-000-131
9000 ± 200
144-306-000-141
12000 ± 200
