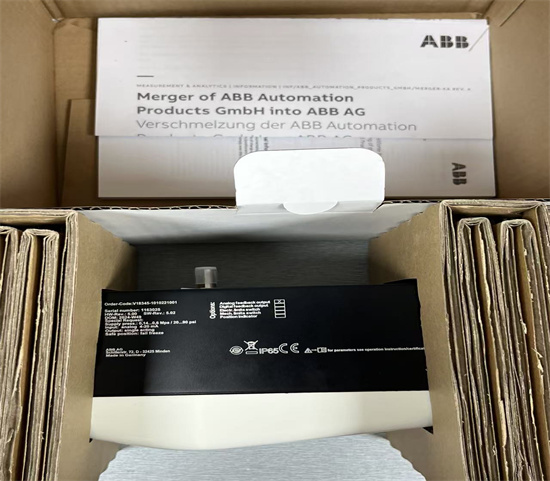

Name: V18345-1010121001 TZIDC Valve Positioner
Availability: InStock
Rating: 4.78 (191 reviews)

Control Type: Single-acting, fail-safe design. It automatically resets the valve to a safe position under abnormal conditions (e.g., power or air supply failure), minimizing operational risks.
Feedback Signal: Built-in 4–20mA analog feedback with a 2-wire connection. This simplifies wiring and enhances signal stability for reliable position monitoring.
Communication Interface: Supports the HART protocol, enabling seamless integration with mainstream DCS (Distributed Control Systems) and PLC (Programmable Logic Controller) systems. It allows for remote monitoring and parameter adjustment.
Protection Class: IP65 rating, providing excellent dust and water resistance to adapt to harsh industrial environments.
Stroke Range: Accommodates linear strokes of 20–150mm and rotary strokes of up to 125°, meeting diverse valve control requirements.
Air Consumption Performance: Air capacity ≥13.5kg/h, and steady-state air consumption ≤0.03kg/h, achieving energy efficiency.
Temperature Range: Operates within -40℃ to +85℃, with a wide temperature adaptability to withstand extreme environmental conditions.
