TQ912 111-912-000-011 A1-B6-E5000-F0-G0-H05 Proximity Sensor

TQ912 111-912-000-011 A1-B6-E5000-F0-G0-H05  Proximity Sensor

• The TQ902/TQ912, EA902 and IQS900 form proximity measurement chains, from Parker Meggitt’s vibro-meter® product line.TQ9xx-based proximity measurement chains allow contactless measurement of the relative displacement of moving machine elements, and provide an output signal proportional to the distance between the sensor tip and the target. Accordingly, these measurement chains are ideally suited for measuring the relative vibration and axial position of rotating machine shafts, such as those found in steam, gas and hydraulic turbines, as well as in alternators, turbo-compressors and pumps.A TQ9xx-based proximity measurement chain consists of a TQ9xx proximity sensor,an optional EA90x extension cable and a IQS900 signal conditioner, configured for a particular industrial application. The EA90x extension cable is used to effectively lengthen the front-end, as required. Together, these form a calibrated proximity measurement chain in which each component is interchangeable.

• Similar and Difference between TQ902 / TQ912 sensors and cabling

  The active part of a TQ9xx proximity sensor is a coil of wire that is moulded inside the tip of the device, made of PPS (polyphenylene sulfide), a high-performance, high-temperature engineering thermoplastic. The sensor body is made of stainless steel. The target material must, in all cases, be metallic.Both sensor bodies are available with metric or imperial threads and have an integral coaxial cable terminated with a self-locking miniature coaxial connector.

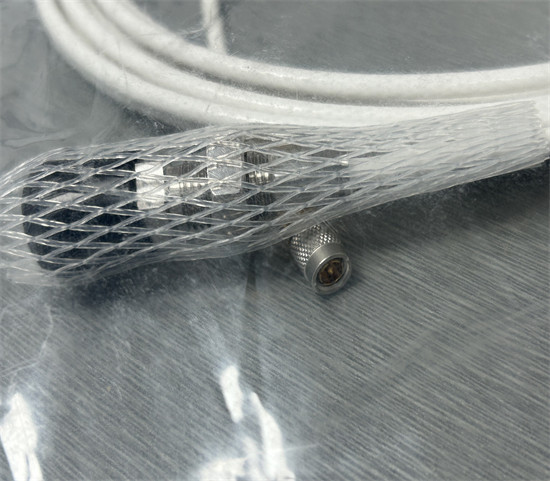

Picture of TQ912 111-912-000-011 A1-B6-E5000-F0-G0-H05  proximity sensor
