vibration
TSI SYSTEM vibration TQ402 111-402-000-012 proximity sensor

TQ402 111-402-000-012 proximity sensor

  • product orgin:

    Sweden
  • brand:

    vibration
  • product details


TQ402 111-402-000-012 proximity sensor

  • The system is built around a TQ402 or TQ412 non-contact sensor paired with an IQS900 signal conditioner. Together, these components form a fully calibrated proximity measurement system where each part is interchangeable. The system outputs a voltage or current signal proportional to the distance between the transducer tip and the target—for example, a machine shaft.
  • The transducer’s active element is a coil of wire embedded in the tip, which is made of Torlon® (polyamide-imide). The transducer body, by contrast, is crafted from stainless steel. It is critical to note that the target material must always be metallic, regardless of application.
  • The transducer body is available with either metric or imperial thread options. The TQ412 variant is specifically designed for reverse-mount applications. Both the TQ402 and TQ412 come with an integral coaxial cable, terminated with a self-locking miniature coaxial connector for reliable signal transmission.
  • Cable length customization is also supported, with options for both standard integral lengths and extended versions to meet diverse installation needs.

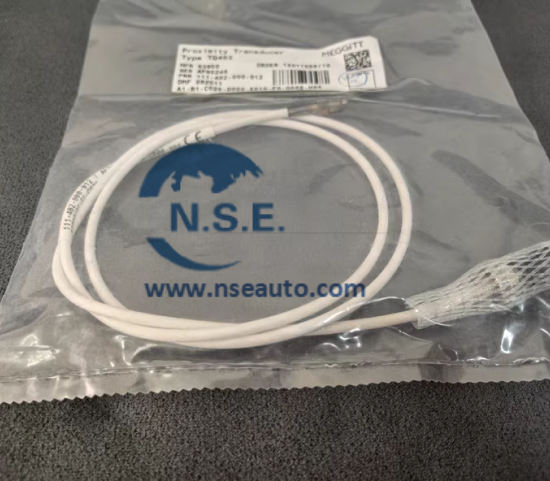

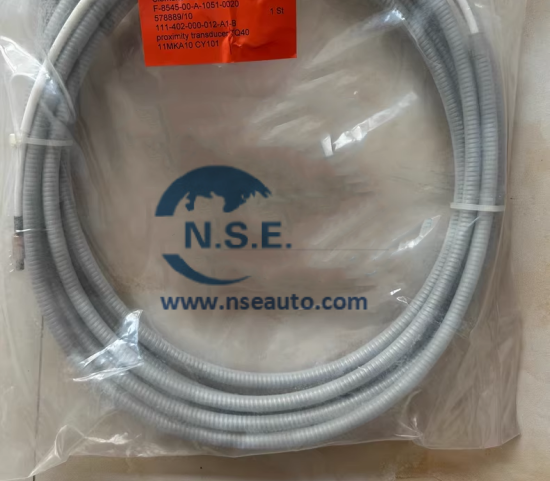

Picture of 111-402-000-012

Related Product,welcome to inquire:

sales23@htechplc.com /+86 18150137569(whatsapp/wechat)

Ms.kelly stand by to quote you !

TQ402 111-402-000-013 TQ402 111-402-000-013 A1-B1-C042-D000-E050-F0-G000-H05
TQ412 111-412-000-012 TQ412 111-412-000-012 A1-B1-E010-F1-G010-H10
TQ912-011 111-912-000-011 TQ412 111-412-000-013 A1-B6-E010-F0-G000-H05
TQ902-011 111-902-000-011 TQ412 111-412-000-013 A1-B1-E010-F0-G000-H05
TQ412 111-412-000-012 A1-B1-E010-F1-G010-H05 TQ412 111-412-000-013 A1-B6-E050-F0-G000-H05
TQ412 111-412-000-013 A1-B6-E050-F2-G048-H05 TQ412 111-412-000-013 A2-B1-E005-F0-G000-H05
