IS200JPDFG1A GE Power Distribution Board

  • product orgin:

    USA

  • brand:

    General Electric
  • product details


IS200JPDFG1A GE Power Distribution Board


  • Basic Attribute: A DC power distribution module under GE’s Speedtronic Mark VI series, it is a component of the IS2020JPDF power module. It consists of a circuit board and a sheet metal structure with DC circuit breakers, weighing about 6kg and measuring 310mm×170mm×85mm. Featuring an aluminum alloy housing, it is compatible with two types of DACA modules for industrial control system integration.
  • Core Specifications: Input and output voltage are both 125V DC, with a rated current of 30A and a surge current of up to 1000A. It is equipped with 9 output channels, 18 independent rated-power fuses, and 14 plug connectors. The operating temperature range is -40℃ to 70℃, adapting to harsh industrial environments.
  • Key Functions: Supports redundant power input, distributing electricity after processing by circuit breakers and filters. It connects to the PPDA board via a ribbon cable to feed back bus voltage and detect ground faults. It has overload, short-circuit, and over-temperature protection; a 30-second wait is required before powering on again after shutdown to ensure operational safety.
  • Application Scenarios: Widely used in power, chemical and other fields, it is suitable for gas/steam turbine control systems, providing stable power for turbine automation drive components. As a core power distribution spare part, it reduces equipment failure downtime and ensures the continuous and stable operation of key equipment such as turbines.

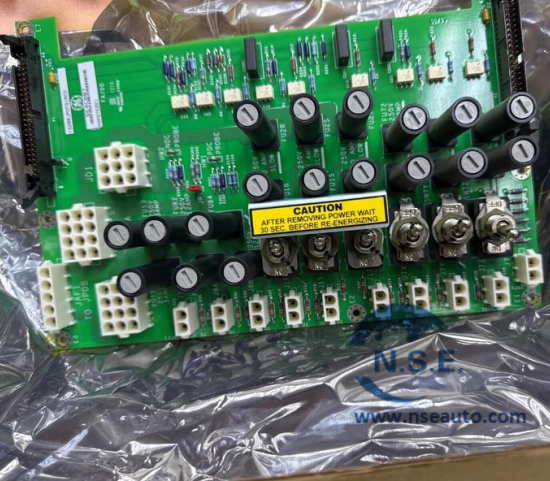

Picture of IS200JPDFG1A
