IPC707 244-707-000-012 Signal Conditioner With Optional Diagnostics Continuously Monitors The Status

  • Product Type & Positioning: A configurable signal conditioner from Meggitt Vibro-Meter’s IPC707 series, designed to replace the legacy IPC704 model. It acts as a critical bridge between piezoelectric sensors and monitoring systems, tailored for industrial vibration and dynamic pressure measurement in harsh environments.
  • Configuration Details (Suffix Codes): The alphanumeric suffixes define key functions: A3 (standard environment), B1 (with SIL diagnostics), C1 (specific transfer sensitivity), D1 (voltage output unit: mV/pC), E2 (2 Hz high-pass filter), F20000 (20,000 Hz low-pass filter), and G2 (with DIN-rail adaptor for easy installation).
  • Key Specs & Compliance: Sensor operating temp ranges from -40°C to 180°C, with 2-hour short-term survival at 220°C; cabling/connectors withstand -40°C to 200°C. Complies with IEC 61508 (SIL 2) and ISO 13849 (PL c Cat 1) for functional safety, plus ROHS and EMC standards.
  • Compatibility & Applications: Works seamlessly with CAxxx piezoelectric accelerometers and CPxxx dynamic pressure sensors. Ideal for gas turbines, compressors, and critical rotating machinery in power generation, oil and gas industries—especially in hazardous areas.
  • Core Advantages: Swiss-manufactured for long-term reliability, with low measurement drift and strong anti-interference. Configurable filtering and output options adapt to diverse monitoring needs, supporting predictive maintenance to minimize downtime.

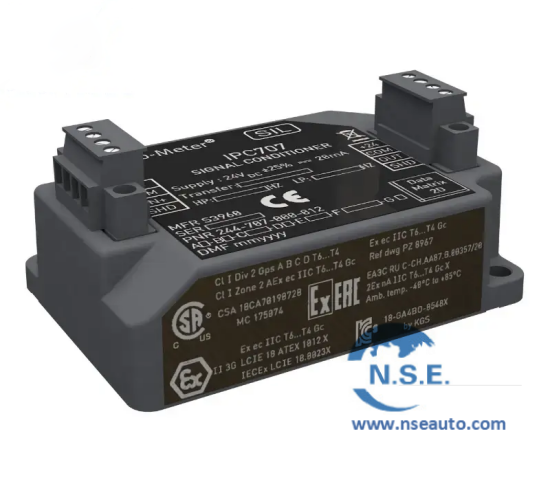

Picture of 244-707-000-012
