IS200TDBSH6ABC

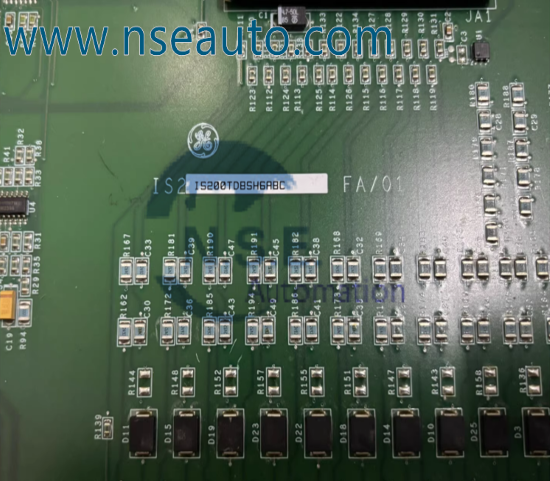

GE IS200TDBSH6A Discrete Simplex Card


  • brand:

    General Electric
  • product details

GE IS200TDBSH6A




I. Power Supply Characteristics

  • Operating Voltage: 24VDC ±5%
  • Maximum Power Consumption: 15W

II. Signal Processing

  • Sampling Accuracy: 16-bit ADC (Analog-to-Digital Converter)
  • Refresh Rate: 1ms/channel

III. Communication Capabilities

  • Bus Protocol: Profibus DP-V1
  • Transmission Rate: 12Mbps

IV. Interface Configuration

(I) Digital I/O

  • Input: 32 isolated inputs, supporting dry contact/NPN
  • Output: 16 relay outputs, with a contact rating of 5A@30VDC

(II) Analog Expansion

  • Input: 8-channel voltage input, with a range of 0-10V
  • Output: 4-channel current output, with a range of 4-20mA and support for the HART protocol

V. Environmental Specifications

  • Operating Temperature: -40°C to +70°C (Industrial Wide Temperature Version)
  • Storage Temperature: -55°C to +85°C
  • Ingress Protection: IP67, with anti-corrosion coating
  • Vibration Resistance: 5-2000Hz/5Grms, compliant with IEC 60014-1 and IEC 60068-2-6 standards

VI. Mechanical Features

  • Dimensions: 178mm × 132mm × 35mm
  • Mounting: DIN rail, compliant with EN 60715 standard
  • Connector: 38-pin high-density terminal block, Phoenix Contact series

VII. System Integration

  • Controller Compatibility: Compatible with GE Mark VIe/VIII/V&V Series
  • Firmware Version: Requires V04.09 or higher
  • Diagnostics: Includes LED status indication, and supports self-test protocol execution via ToolboxST software
