| Manufacturer | GE |
| Series |
Mark VI |
| Short Description |
Thermocouple Input Terminal Board |
|
Origin |
US |
|
HS Code |
IS200TBTCH1B |
| Operating temperature |
-40°C to +85°C (industrial wide temperature range) |
| Packing Weight | 720g |
| Condition |
In Stock New & Original |
| Lead Time |
3-7 days |
|
Warranty |
12 monthes |
| Courier | Fedex/DHL/Your forwarder |
| Payment | T/T Multiple Currency Prepayment acceptable |
| Document | Available |
brand:

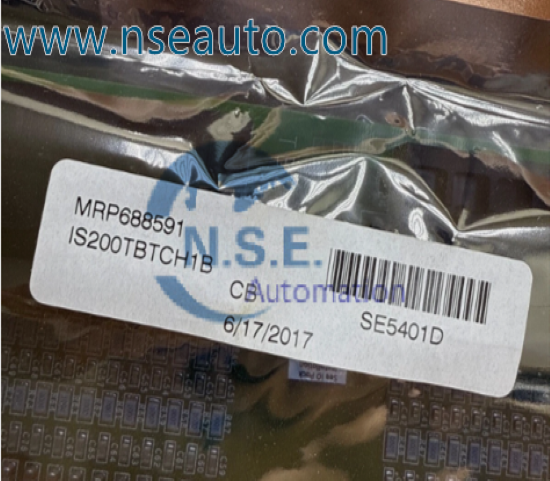

General ElectricGE IS200TBTCH1B
Thermocouple Input Terminal Board
IS200TBTCH1B is a thermocouple input terminal board for General Electric (GE) Mark VI series industrial control systems, supporting K/J/T/E type thermocouple signal access and equipped with 16 isolated channels. The board is powered by 24VDC, has an operating temperature range of -40°C to 85°C, has 1500Vrms channel isolation and IP20 protection level, and is designed for temperature monitoring systems of industrial equipment such as gas turbines and steam turbines, and is suitable for harsh industrial environments with high vibration and wide temperature differences.
1. Basic parameters
Input type: supports K/J/T/E type thermocouple input
Channel capacity: 16 independent isolated channels
Measurement accuracy: ±0.1% F.S (full scale)
Sampling rate: 100 times/second (synchronous sampling of all channels)
2. Electrical characteristics
Working voltage: 24VDC ±10%
Isolation voltage: 1500Vrms between channels
Common mode rejection ratio: >120dB @ 50/60Hz
Noise suppression: built-in digital filtering (optional 1/10/50Hz)
3. Mechanical specifications
PCB size: 220mm × 150mm × 2.4mm
Connector type: AMP MICTOR 36 pins
Installation method: DIN rail installation (compliant with EN 60715 standard)
Weight: 480g ±5%
4. Environmental adaptability
Working temperature: -40°C ~ +85°C
Storage temperature: -55°C ~ +125°C
Protection level: IP20 (need to be used with chassis)
Vibration resistance: 5-2000Hz/5Grms (IEC 60068-2-6)
V. Communication interface
Protocol support: Modbus RTU/TCP
Transmission rate: 10/100Mbps adaptive
Data format: IEEE 754 floating point type
Diagnostic function: wire break detection/cold end compensation
Related :
IS200TREGH2B
IS200TRPGH1B
IS200TTURH1C
