PLC SYSTEM GE GE DS200SHVIG1BGD Turbine Control On RAM Board

GE DS200SHVIG1BGD Turbine Control On RAM Board

  • product orgin:

    Sweden
  • brand:

    General Electric
  • product details


GE DS200SHVIG1BGD Turbine Control On RAM Board


  • Function & Purpose: Part of GE’s Mark V turbine control system series, it acts as an interface platform between the SCR bridge and power supply, facilitating communication with the driver’s current power connection card, instrument card, and power supply.
  • Signal Processing: Processes voltage signals ranging from -500mV to 500mV, and converts them into a differential frequency of 0 to 500kHz for the driver power supply.
  • Configurability: Equipped with 17 jumpers for user customization; each jumper enhances the board’s attenuation capability, and it comes with a 10:1 current transformer.
  • Status Indication: Features three on-board LED indicators to alert users whether the filter fuse is blown.
  • Hardware Protection: Adopts standardized voltage-limiting hardware components (e.g., capacitors, resistors, diodes, and ASICs) for voltage suppression and limitation.

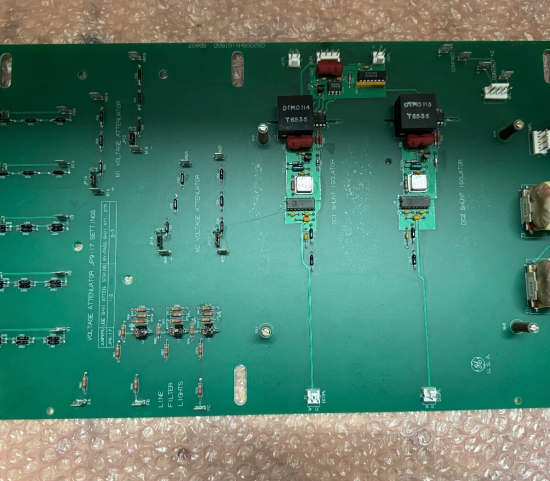

Picture of DS200SHVIG1BGD
