DS200DSPCH1ADA DS200DSPCH1A

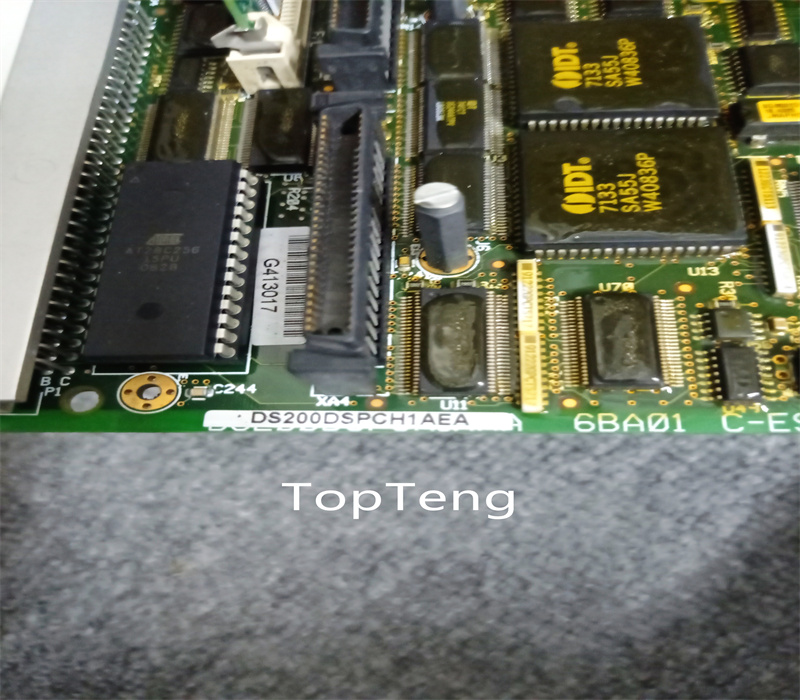

GE DS200DSPCH1ADA Digital Signal Processor Control Board

DS200DSPCH1ADA

large inventory

new original guarantee

  • item no.:

    DS200DSPCH1ADA DS200

  • lead time:

    2-3 working days

  • product orgin:

    USA

  • brand:

    General Electric

  • shipping port:

    xiamen

  • payment:

    T/T and Western Union

  • market price:

    $900
  • product details

DS200DSPCH1A

Digital Signal Processor Control Board


SPECIFICATIONS:

Part Number: DS200DSPCH1ADA
Manufacturer: General Electric
Series: Mark V
Product Function: Digital Signal Processor Control Board
Power Requirements: +5 V dc, 6 A
Number of relay channels: 12
Trip Solenoid Rating: 125 V dc
Power supply voltage: 28 V dc
Voltage Range: 18 - 32 VDC
Mounting Option: DIN-rail mounting
Operating temperature: -30 to +65 degrees Celsius
Size: 15.9 cm high x 17.8 cm width
Repair: 3-7 Day
Availability: In Stock
Country of Manufacturer: United States (USA)
Manual: GEI-100220

FUNCTIONAL DESCRIPTION:

DS200DSPCH1ADA is a Digital Signal Processor Control Board manufactured and designed by General Electric as part of the Mark V Series used in GE Speedtronic Control Systems. The DS200DSPC board (DSPC) is a high-performance processor board based on a digital signal processor that provides computational capacity and communications bandwidth for direct control of high-performance power converters applications such as uninterruptable power sources (UPS), active filters, dynamometers, wind turbines, high performance drives, and large multi-bridge power converters. The board plugs into one slot of a VME rack but occupies two slots of space (for the quantity of one to four daughterboards). The DSPC board can serve as a master or slave device, yet it provides its program memory and expandable local high speed I/O for direct interface to control signals without using the VME datapath.

FEATURES:

  • The DSPC board provides optional VME bus interface connectors (P1 and P2) that are compatible with the GE Fanuc 90/70 Programmable Logic Controllers (PLCs). The DSPC board can function as an A24/D16 VME bus slave with an 8K dual-ported SRAM interface.
  • The board can also function as a VME bus master to initiate a bus transfer cycle, including bus arbitration. VME bus access is controlled in a configurable static random access memory (SRAM) based field programmable gate array (FPGA) device.
  • Bus interface configuration information resides in a programmable logic device that can be reconfigured as required for a specific application (this method minimizes manual jumpers). VME bus I/O is asynchronous and a timeout is provided for non- responding addresses.
  • Program and FPGA logic configuration data is stored in flash memory on a removable SIMM, while configurable items for applications are stored in a socket-mounted EEPROM. Program code is executed from high-speed static RAM after startup.
  • Flash EPROM facilitates the downloading and updating of the application's real-time code and erasable programmable logic device (EPLD) logic. Logic is concentrated in a combination of SRAM-based FPGAs and EPLD programable logic devices.
  • Surface-mounted in-circuit programmable devices are used for the ready generation, chip selection, and boot control logic (these devices are programmed by an in-system programmable [ISP] serial interface).

Related：

DS200FCGDH1BBA  2
IS200EISBH1AAA  2
IS200DSPXH1DBD  3
IS215ACLEH1BC 1
DS200DSPCH1ADA(DS200ADMAH1AAC) 1
IS215ACLEH1CA 1

hot tags : GE DS200DSPCH1ADA DS200DSPCH1AEA GE Board DS200ADMAH1AAC
