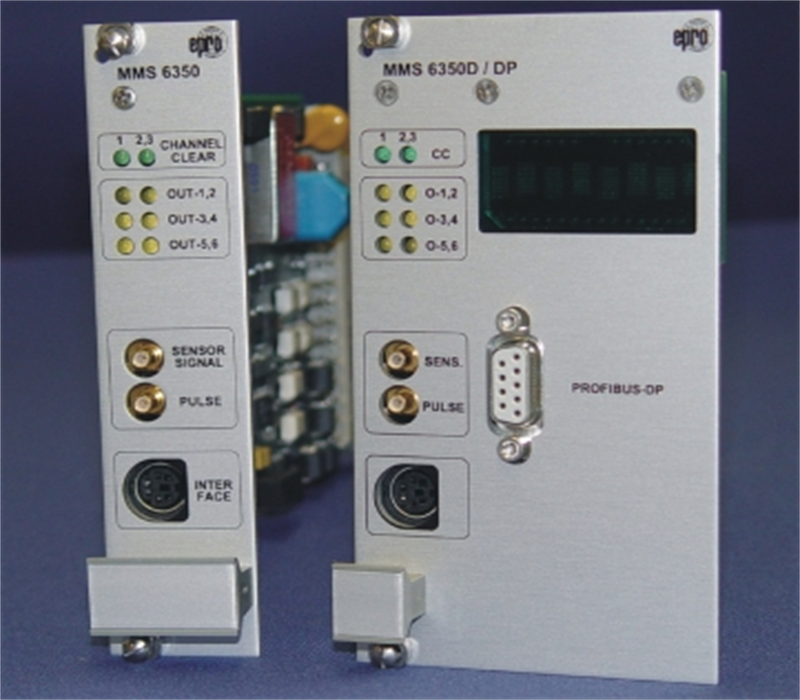

EPRO MMS 6350 Digital Overspeed Protection System MMS6350

EPRO MMS 6350

Digital Overspeed Protection System


Origin：Germany

Condition：Brand new in stock

Lead time :3-7 days

  • item no.:

    EPRO MMS 6350 Digita

  • lead time:

    2-3 working days

  • product orgin:

    USA

  • brand:

    EPRO

  • shipping port:

    xiamen

  • payment:

    T/T and Western Union

  • market price:

    $900
  • product details

EPRO MMS 6350

Digital Overspeed Protection System



System DOPS AS
This system offers a special functionality for Astom applications and is certified according to SIL3 – DIN EN 61508 in combination with epro MMS eddy-current measuring chains. This system line requires the following components: 3 x monitor MMS 6350 (/DP) (incl. firmware appl. no. 2) Profibus interface: (optional) alternatively - 3 x monitor MMS 6350D (/DP) (incl. firmware appl. no. 2) with speed display Profibus interface (optional) All three DOPS system lines offer the same extensive system supervision functions. Reasons for module disturbances can be read out in detail via the communication interface or, at modules with a display, directly on the display. This permits the technicians to recognize the reason for the fault immediately. During the change from the error to the ok-state and after power-on of the module, all functions of the module are blocked for a delay time of 5 sec. Depending on the backplane used or the installed firmware, the indication of faults or overspeeds is made via function-outputs and beside this via relay outputs with 2 out of 3 combinations of the alarm outputs. The systems DOPS and DOPS AS offer the following supervision functions: Pulse comparison Analog comparison Gap supervision (Not for DOPS TS) Sensor supervision: (Short-circuit, interruption) Sensor signal level Sensor supply current System supply voltages System Watch-Dog Internal temperature



Technical Data
Signal input:
diff. input, non-reactive, open
circuit and short-circuit proof
Input voltage range:
0...30 Vdc
Input resistance:

>100 kOhm


Sensor signal output:
Front socket SENS.
decoupled, open circuit and short
circuit proof, non-reactive, not
calibrated, in phase with sensor
signal
Voltage range: 0....4,1Vpp
Amplitude =
Sensor signal x (-0,15)
Accuracy:
±1% of full scale
Frequency range:
0...16 kHz (-3 dB) ±20 %
Permissible load resistance:
>1 MΩ
Internal resistance:
10 kOhm


Dynamic outputs:
Front socket pulses
The processed input pulses are
output as TTL – pulses.
open circuit and short-circuit
proof, non-reactive
Nominal range:
TTL – level, 5 VSS
Frequency range:
0 Hz...20 kHz
Permissible load resistance:
> 1 MΩ
Internal resistance:
5,1 kΩ
Pulse output
Pulse-C, Pulse-E
(Not available for DOPS TS)
The processed input pulses are
output via potential-free opto
coupler outputs. The pulses are
in phase with the input signal
Max. voltage (DC7):
+48 Vdc on collector
Max. current with C-E con
ducting:
Current limitation on 25 mA
Signal conditioning of the
characteristic values:
Before processing by the
processor, the input signals are
standardized. The characteristic
value is proportional to the
speed.


Relevent products , we have all these in stock , welcome to inquire

MMS 6350/DP
MMS 6350D/DP
MMS 6351/00
MMS 6351/10
MMS 6352
MMS 6360
MMS 6362
MMS 6363
MMS 6361
MMS 6950
MMS 6354
MMS 6250
MMS 6250/D
MMS 6250D/DP
MMS 6351/00
MMS 6351/10
MMS 6352
MMS 6360
MMS 6362
MMS 6363
MMS 6361
MMS 6950
MMS 6354
