Bently Nevada 3500/32-01-00 149986-02 4-Channel Relay Module


  • product orgin:

    USA

  • brand:

    Bently Nevada
  • product details


Bently Nevada 3500/32-01-00 149986-02 4-Channel Relay Module

  • The 14996-02 is a relay control module developed by Bently Nevada as part of the 3500 series machinery protection system components.
  • This module is a full-height unit equipped with four independent relay outputs, supporting flexible alarm and logic implementation within the 3500 system architecture.
  • Multiple modules of this type can be installed into any slot located to the right of the Transient Data Interface module, allowing for scalable system configuration.
  • Each of the four relay outputs can be independently programmed to implement custom voting logic based on system requirements.
  • Every relay on the module incorporates dedicated Alarm Drive Logic, which supports AND/OR logical operations. This logic can use alarm inputs such as Alert and Danger statuses, Not OK conditions, or individual PPL signals from any monitor channel — or any combination of channels within the rack.
  • Using the standard 3500 Rack Configuration Software, users can fully program the Alarm Drive Logic to match specific site and application requirements.
  • The Bently Nevada 3500/32 is also a full-height relay module designed for the 3500 series monitoring platform.
  • It features four independent SPDT relay outputs, each configurable to activate based on user-defined alarm conditions.
  • The module integrates the same flexible Alarm Drive Logic, allowing users to combine Alert and Danger signals from any monitor channel using AND/OR logic.
  • This design improves overall system safety, enabling reliable and rapid response to abnormal equipment conditions or fault events.

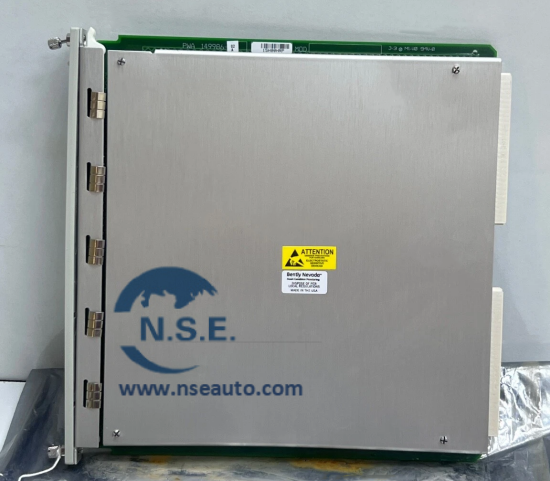

Picture of 149986-02
