Bently Nevada 330180-51-05 5/8 mm Proximitor Sensor


  • product orgin:

    USA

  • brand:

    Bently Nevada
  • product details


Bently Nevada 330180-51-05 5/8 mm Proximitor Sensor

  • The Bently Nevada 3300 XL 8mm Proximity Transducer System is a complete set—you get one 3300 XL 8mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor, all designed to work together seamlessly. The way it works is straightforward but reliable: it puts out a voltage that’s directly tied to the distance between the probe tip and the conductive surface it’s monitoring. That means it can measure both static values (like position, say how a shaft is aligned) and dynamic values (like vibration, those tiny movements that hint at wear or misalignment).
  • For folks working with fluid-film bearing machines—think turbines, large pumps, or compressors—this system is a go-to. It’s mainly used for two big jobs: tracking vibration and position on those machines, plus handling Keyphasor reference signals and speed measurements. Those are all critical for keeping equipment running safely—you can’t spot early issues without accurate data on how the machine’s moving.
  • What’s really notable about the standard 3300 XL 8mm 5-meter system is that it fully meets the American Petroleum Institute’s (API) 670 Standard (4th Edition). That’s not just a checkbox; it means it hits all the requirements for mechanical setup, linear measurement range, accuracy, and how well it holds up to temperature changes—super important in industrial spots where heat or cold can throw off less robust tools.
  • And here’s a huge time-saver for technicians: every 3300 XL 8mm proximity transducer system performs at that same high level, and all the parts are completely interchangeable. You can swap out probes, extension cables, or Proximitor sensors without having to match them to each other or do bench calibrations for individual components. No more wasting time tweaking parts to get them to work together—just plug in the new component and go.

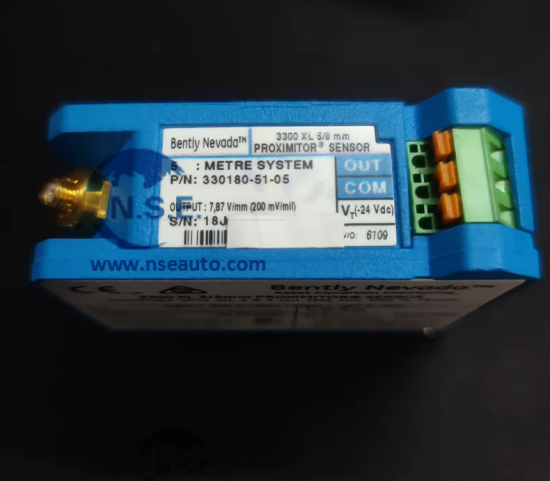

Picture of 330180-51-05
