Bently Nevada 3300/48-03-02-00-00 Case Expansion

  • lead time:

  • product orgin:

    USA

  • brand:

    Bently Nevada
  • product details


Bently Nevada 3300/48-03-02-00-00 Case Expansion


  • Product Type & Core Role: It is a dual-channel case expansion monitor in Bently Nevada’s 3300 series. By receiving signals from LVDT sensors, it measures the thermal expansion or absolute displacement of rotating equipment casings in real time, serving as a key monitoring device to ensure thermal alignment and safe operation of steam turbines, compressors, etc.
  • Key Specifications: Compatible with 3300-series LVDT sensors, supporting ±200mV~±2V DC input. Its measurement range covers 0~50mm, meeting the casing expansion monitoring needs of large equipment. It operates at -20℃~+60℃, powered by -18Vdc/-24Vdc with power consumption ≤8W, and features a modular design suitable for 3300-series standard racks.
  • Core Functional Features: Supports dual-channel independent monitoring, allowing simultaneous access to two groups of LVDT signals. It has a differential monitoring function to calculate the difference between two signals and customize alarm thresholds. A built-in signal diagnostic module identifies faults like sensor disconnection, with LED indicators showing operating status intuitively. It can link with the 3300/45 communication module for centralized data upload and remote monitoring.
  • Typical Application Scenarios: Widely used in steam turbines, centrifugal compressors in power and petrochemical industries. It monitors casing thermal expansion and relative displacement to prevent faults such as equipment rubbing and misalignment caused by uneven thermal expansion, providing data support for safe control during equipment startup/shutdown and load adjustment.

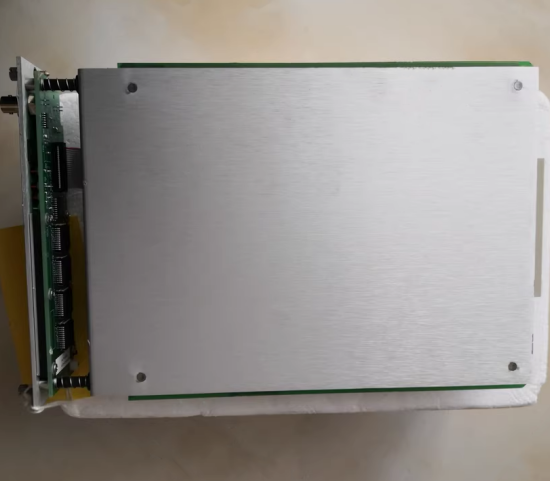

Picture of 3300/48-03-02-00-00
