Bently Nevada 3300/14-01-20-00 DC Power Supply

  • product orgin:

    USA

  • brand:

    Bently Nevada
  • product details


Bently Nevada 3300/14-01-20-00 DC Power Supply

  • Product Type & Core Role:3300/14-01-20-00 is a dual-channel keyphasor monitor under Bently Nevada’s 3300 series, tailored for rotating equipment. It focuses on real-time speed measurement and phase synchronization, acting as a critical link for vibration fault analysis—it provides phase reference signals to vibration monitors (e.g., 3300/16 series) to pinpoint issues like shaft unbalance or misalignment.
  • Key Specifications:It supports 3300-series eddy current keyphasor probes, accepting -4V~+2V DC input signals. Its speed monitoring range covers 1~30,000 RPM, fitting medium-to-high-speed equipment needs. Operating temperature spans -20℃~+60℃ (storage: -40℃~+85℃) for industrial site adaptability. Powered by -18Vdc/-24Vdc with ≤5W consumption, it uses a modular design for 3300-series standard rack installation.
  • Core Functional Features:Dual independent channels enable monitoring two devices or two signal groups from one device. It has customizable over-speed alarm thresholds, with relay outputs for equipment protection. A built-in diagnostic module detects probe disconnection or signal distortion, while LED indicators show real-time status. It also communicates with 3300/48 modules for centralized data upload and remote monitoring.
  • Typical Application Scenarios:Widely used in power and petrochemical industries, it monitors steam turbines, centrifugal compressors, and large motors. By correlating speed and phase data with vibration, it helps identify faults early, supporting predictive maintenance and reducing unplanned equipment downtime.

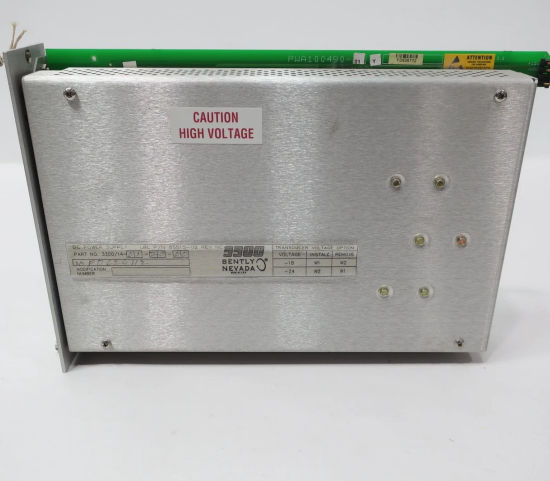

Picture of 3300/14-01-20-00
