TSI SYSTEM Bently Nevada BENTLEY NEVADA 176449-05 Dynamic Pressure Module 3500/64M

BENTLEY NEVADA 176449-05 Dynamic Pressure Module 3500/64M


  • product orgin:

    USA
  • brand:

    Bently Nevada
  • product details


BENTLEY NEVADA 176449-05 Dynamic Pressure Module 3500/64M

  • The Bently Nevada 3500/64M (model 176449-05) is a dynamic pressure monitor designed for the 3500 monitoring system. This is a single-slot, four-channel module that accepts inputs from high-temperature pressure transducers and generates alarm signals based on the measured data. Each channel is dedicated to measuring band-pass dynamic pressure, providing reliable condition monitoring for critical machinery.
  • The module is fully configurable using the 3500 Rack Configuration Software, which allows users to set band-pass corner frequencies and apply an additional notch filter as needed. It also includes a recorder output to support integration with external control systems for further analysis and process control.
  • Each channel can be configured to condition input signals and produce the required measured variables. Users can set independent alert and danger setpoints for each active measured variable, enabling precise, customizable protection and monitoring for each channel.

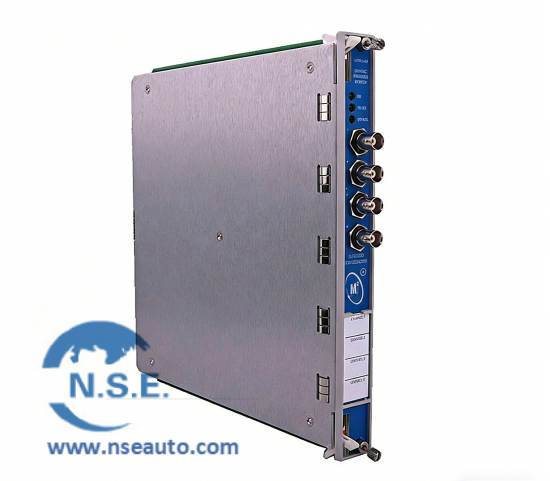

Picture of 176449-05
