ABB PM864AK01 3BSE018161R1 Processor Unit

PM864AK01 Processor Unit Consisit of :
CPU PM864A

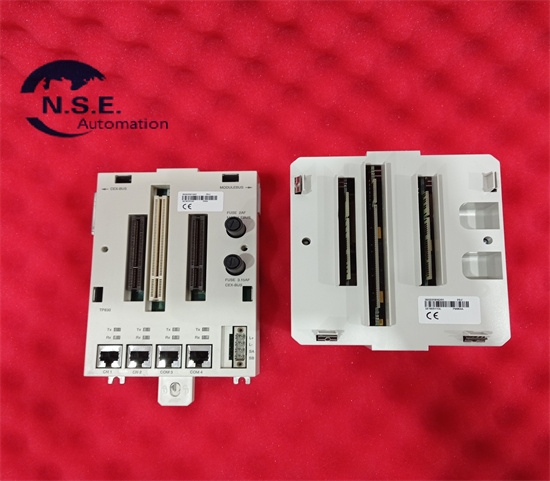

Baseplate TP830

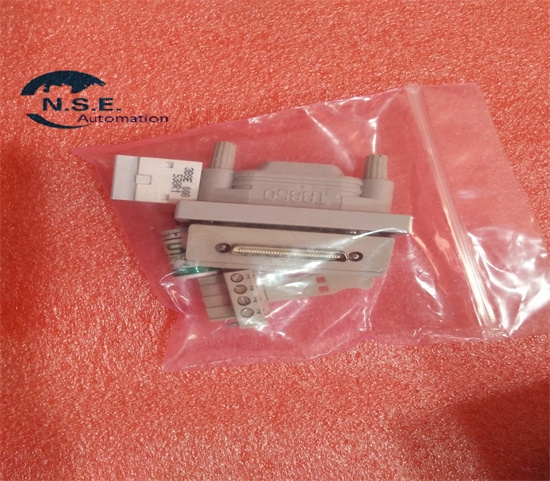

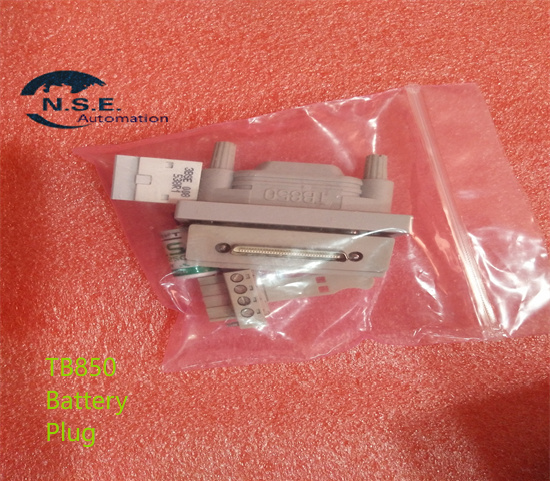

Terminator TB850
Terminator TB807
Terminator TB852
Battery 4943013-6
Power Plug 3BSC840088R4

  • brand:

    ABB
  • product details

ABB PM864AK01 3BSE018161R1

The PM864AK01 is a core processor module of the ABB AC 800M control system, with the part number 3BSE01816R1. Below is a detailed introduction to it:

1. Performance Parameters

  • Processor: Adopts PowerPC 604e or Motorola PowerPC 604, with a main frequency of 400MHz.
  • Memory: Features a memory capacity of 256MB RAM (some versions may have 512MB RAM) and 256MB Flash.
  • Communication Interfaces: Supports multiple interfaces such as Ethernet, PROFIBUS DP, RS-232, RS485, and USB.

2. Key Features

  • High-Performance Processing: Utilizes an advanced processor architecture, supporting complex logical operations and real-time control, and capable of handling real-time feedback and dynamic control requirements.
  • High Reliability: Incorporates a redundant design, supporting redundancy for CPU, CEX bus, communication interfaces, and I/O modules. It also uses industrial-grade components to ensure long-term reliable operation.
  • Strong Expandability: Compatible with a variety of communication protocols for easy system integration, and supports a modular design to allow gradual expansion.
  • Flexible Programming: Supports multiple programming languages under the IEC 61131-3 standard, such as Ladder Diagram (LD), Structured Text (ST), and Function Block Diagram (FBD).

3. Physical Characteristics

  • Operating Temperature: -40°C to +70°C.
  • Power Supply Voltage: 24V DC.
  • Dimensions: 200mm x 120mm x 45mm or 220mm x 110mm x 50mm.
  • Weight: Approximately 1.5 kilograms.

4. Application Fields

  • Industrial Automation: Can be used for PLC control, data acquisition, and remote monitoring, such as automated control of production lines in the manufacturing industry.
  • Process Control: Suitable for precision control systems in fields like petroleum, chemical engineering, and pharmaceuticals, and can control industrial processes such as temperature, pressure, and flow rate.
  • Power Systems: Supports substation automation, power grid dispatching, and energy management.
PM864AK01 Processor Unit Consisit of :
CPU PM864A
Baseplate TP830
Terminator TB850
Terminator TB807
Terminator TB852
Battery 4943013-6
Power Plug 3BSC840088R4
