New and factory original in anti-static bag with individual sealed inner box.item no.:
DO810 3BSE008510R1lead time:
2-3 daysproduct orgin:
SWIZERLANDbrand:
ABBshipping port:
Xiamenpayment:
T/T and Western Union.market price:
$999The following is a guide to configuring and using the DO810 module:

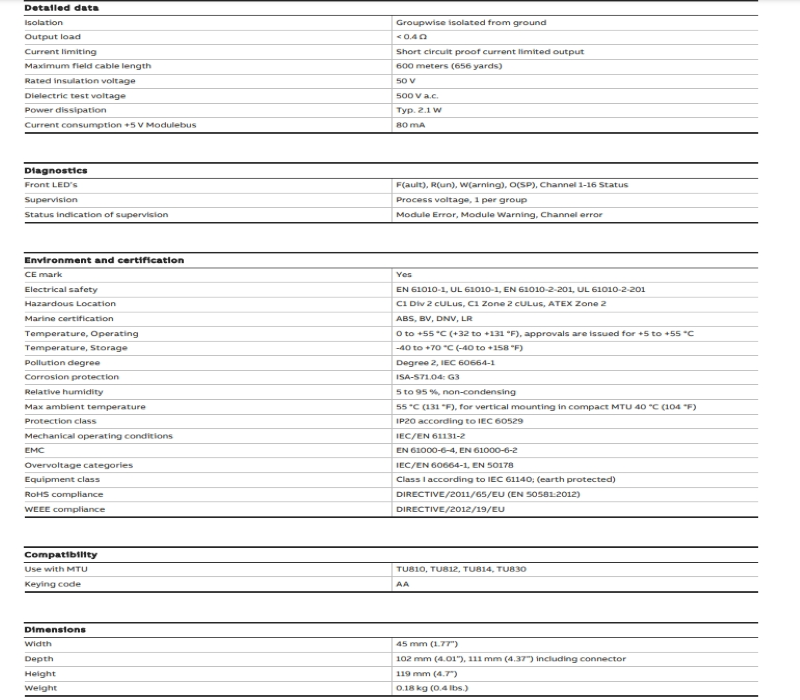

1. Module Overview
Type: Digital Output Module
Number of Channels: 16 Digital Outputs
Output Voltage: 10-30 V DC
Maximum Output Current: 0.5 A (per channel)
2. Installation Steps
Choose an Installation Location:
Ensure that the module is installed in a well-ventilated location and avoid high temperature and humidity.
Connect Power:
Connect the power cord to the power input of the module.
Wiring:
Connect output devices (such as relays, indicator lights, etc.) to the corresponding output ports as needed.
3. Configuration Steps
Use Programming Tools:
Configure through ABB's programming software (such as AC500).
Set Output Parameters:
Set the operating mode of each output channel (such as normally open, normally closed) in the software.
Test Output:
After configuration, test to ensure that each output channel is working properly.
4. Precautions for Use
Short Circuit Protection: Ensure that the output device does not cause a short circuit to protect the module.
Load requirements: Do not exceed the maximum output current (0.5 A) of each channel.
Regular inspection: Check the wiring and module status regularly to ensure it is operating normally.
5. Troubleshooting
No output: Check the power connection and output device connection.
Unstable output: Check whether the load exceeds the rated range of the module.
6. Technical support
For further support, please contact ABB customer service or refer to relevant technical documents.
I hope this information can help you configure and use the DO810 module smoothly! If you have other questions, please feel free to ask me.
