ABB 70PR05B-ES HESG332204R1 Programmable Processor Module

  • product orgin:

    Sweden

  • brand:

    ABB
  • product details


ABB 70PR05B-ES HESG332204R1 Programmable Processor Module

  • Product Type & Core Role: It is a process control module of ABB’s Advant OCS system, a core component for continuous control and logic control in industrial automation. Its core function is to receive analog/digital input signals, execute control algorithms such as PID regulation and logical operations, and output precise control commands to achieve closed-loop regulation of industrial process parameters and interlocking control of equipment.
  • Key Specifications: Compatible with Advant OCS system and supports multi-protocol compatibility. It includes 5 analog input channels, 3 analog output channels, and 8 digital input/output channels. The input range is compatible with 4-20mA/0-10V, with an output accuracy of ±0.1%FS. The operating temperature range is -20℃~+65℃, with an IP20 protection class and power consumption ≤15VA. It supports standard DIN rail mounting, with dimensions adapting to the system rack layout.
  • Core Functional Features: Integrates PID control function blocks with parameter auto-tuning capability. It offers dual modes of logic control and sequential control to meet complex process requirements. Channels are electrically isolated, ensuring strong anti-electromagnetic interference performance. Built-in self-diagnostic function monitors signal abnormalities and module faults for timely reporting, with a mean time between failures (MTBF) exceeding 80,000 hours.
  • Typical Application Scenarios: Widely used in petrochemical, power, metallurgy, pharmaceutical and other industries—such as dual-loop temperature and pressure control of chemical reactors, boiler combustion system regulation, stable control of metallurgical process parameters, and precise regulation of pharmaceutical production processes. It ensures the continuity and stability of industrial processes.

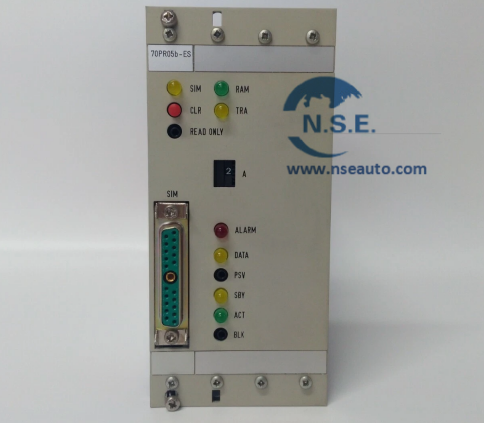

Picture of 70PR05b-ES HESG332204R1

Related Product,welcome to inquire:

sales23@htechplc.com /+86 18150137569(whatsapp/wechat)

Ms.kelly stand by to quote you !

HESG332204R1 HESG447005R2
HESG447307R1 3BSE001440R1
HESG447270R0001 3BSE001458R1
HESG447308R1 HESG447427R1
70SG01R1 70PR05B-ES
70EB01B-E 70EA01B-ES
70BV05A-E 70BK03B-E
70EA02A-ES 70EI05A-E
70BV01C-ES 70BV05A-ES
70BK03B-ES 70AB01C-ES

hot tags : 70AA02B-E 70BA01C-S 70EA01B-ES 70AB01C-ES 70BK03B-ES 70EB01B-E
