Bently Nevada 3500/15 127610-01 AC/DC POWER SUPPLY
ICS TRIPLEX T8830 Trusted 40 Channel Analogue Input FTA All in stock new original guarantee
Dec 2025 17
2025-07-29
Nov 2024 07
| Manufacture | Bently Nevada |
| Short Description |
990 Vibration Transmitter |
| Dimension | 10*8*6 |
| Origin | USA |
| Certificate | COO COC |
brand:

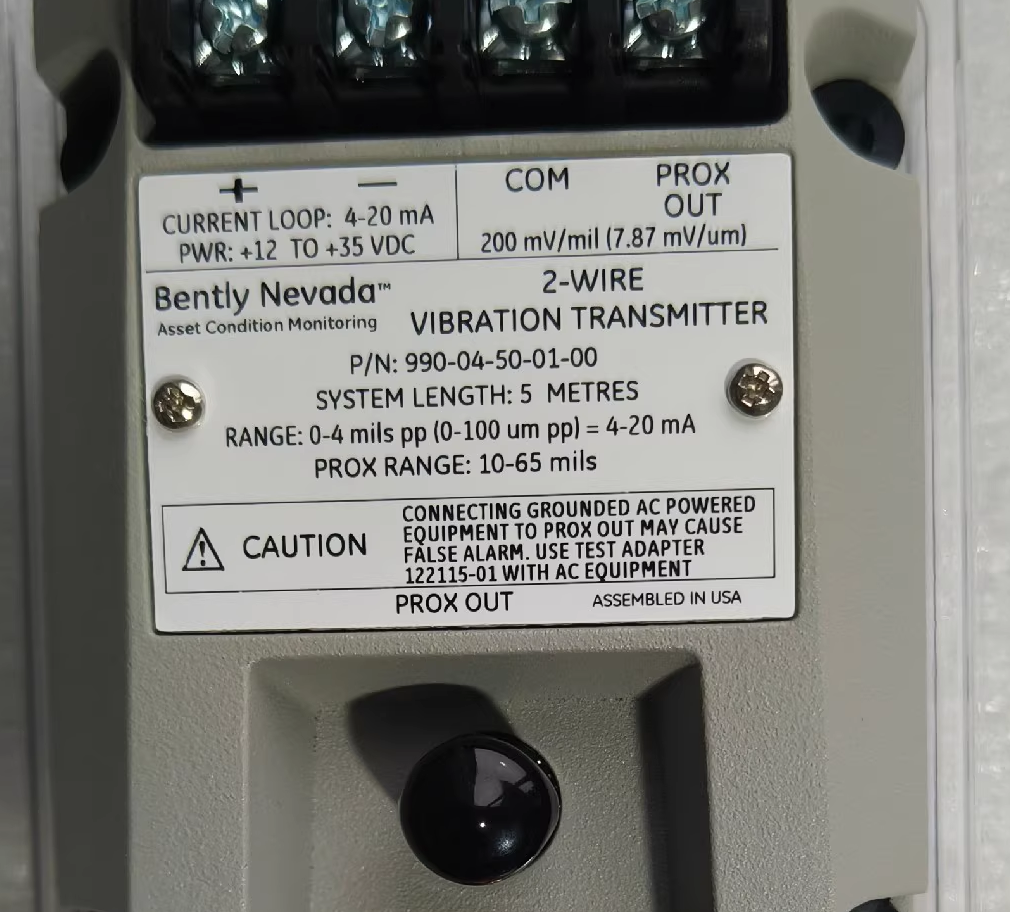

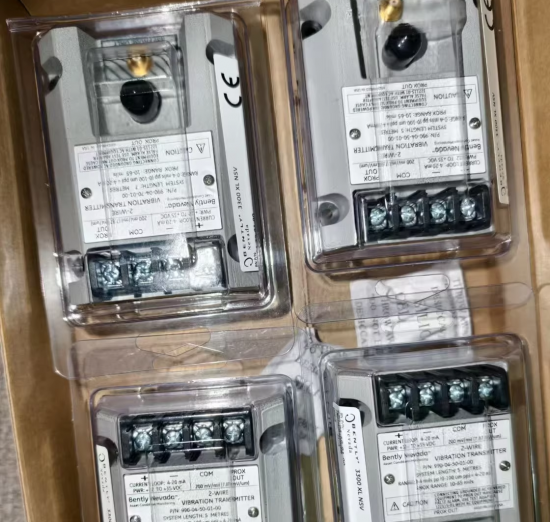

Bently Nevada990-04-70-02-00 | Bently Nevada | Vibration Transmitter
The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options). The transmitter conditions the signal into appropriate peakto-peak vibration amplitude engineering units, and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system where machinery protection alarming and logic occurs†.
The 990 transmitter provides the following notable features:
1.Integrated Proximitor Sensor requires no external unit l Non-isolated "PROX OUT" and "COM" terminals plus a coaxial connector to provide a dynamic vibration and gap voltage signal output for diagnostics‡.
2.Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment.
3.Test Input pin for quick verification of loop signal output, using a function generator as the input.
4.A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection.
5.Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting.
RELATE PRODUCTS
3500/05
3500/20
3500/25
3500/22M
3500/32
3500/33
3500/40M
3500/42M
3500/45
3500/50
3500/53
3500/60
3500/61
3500/63
3500/64M
3500/72M
3500/90
3500/92
3500/94
330930-065-02-00
330902-00-95-05-02-00
990-04-70-02-00
Bently Nevada 3500/32-01-00 All in stock 100% new original products
Bently Nevada 125800-01 Keyphasor I/O Module If you need the price of this item,pls contact me: Item details: Why do you chose our company? Quantity available: 1 Warranty: In excellent condition 12 months. Lead time: 1-2 working days. Terms of payment:T/T and Western Union. NEW AND ORIGINAL FACTORY INDIVIDUAL INNER SEALED PACKAGE BOX AS PER P1
Bently Nevada 330180-50-00 3300 XL Proximitor Sensor Product Type: 330180-50-00 is a 3300 XL Proximitor Sensor developed by Bently Nevada. It is a part of the Bently Nevada Proximity Transducer System. The system can measure static (position) and dynamic (vibration) readings and outputs a voltage that is directly proportional to the distance betwee1
3300 XL 8 mm Eddy Current Proximity Transducer System Bently Nevada 330130-045-00-00 Extension Cable The 3300 XL 8 mm Proximity Transducer System consists of: One 3300 XL 8 mm probe, One 3300 XL extension cable1, and One 3300 XL Proximitor* Sensor2. Output & Measurement Capability: Provides output voltage directly proport1
Bently Nevada 3500/40M 140734-01 Proximitor Monitor
Bently Nevada 149992-01 OUTPUT MODULE 16CHANNEL RELAY SPARE 149992-01 is a spare 16-channel relay output module produced by Bently Nevada. Its main functions include: 1. Relay output Provides 16 independent relay outputs that can be used to control various devices and systems. 2. Monitoring and alarm It can monitor the status of the equipment and t1
