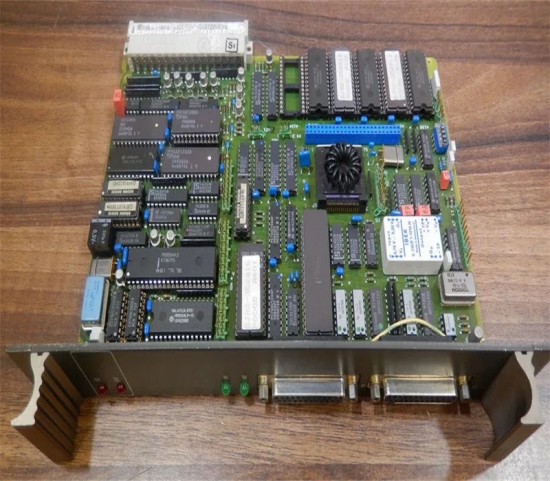

87TS01E
87TS01-E
GJR2368900R234
Coupling Module for Connecting Comput
Origin : Switzerland
Condition : Brand new
Warranty : 12 monthes
item no.:
87TS01E GJR2368900R2lead time:
3-7 daysproduct orgin:
Germanybrand:
ABBshipping port:
Xiamenpayment:
T/T and Western Union.87TS01E GJR2368900R234
Coupling Module for Connecting Comput
Description：
Application
Module 87T$01 is a coupling module for connecting comput-ers or external systems to the PROCONTROL system.
For this purpose, the module is equipped with a serial interfacetype RS232c or RS422 through which a process operatorstation POS,a programming, diagnosis and display systemPDDS, control diagnosis station CDS or another computer cancommunicate with the PROCONTROL system.
The module's scope of action extends over the entire PRO.
CONTROL system.
The application of the various module versions is described inthe relevant application descriptions.
Features：
The module can be used in any station belonging to thePROCONTROL bus system using a redundant 24 V modulesupply (starting with 89MS01/R0200 or 89MS02/R0100).lt isequipped with a standard interface for the PROCONTROLstation bus.
This module requires 2 divisions for mounting space. lt can beplugged into subrack slots with address wiring 1 through 58for the station bus.
The module uses a standard interface for participating in datacommunication within the PROCONTROL system.
The telegrams received from the station bus are checked forerror-free transmission.
Using a serial RS 232c interface, the module is capable ofreceiving instructions and data coming from a computer inaccordance with a defined protocol, as well as transferringinstructions and data to a computer.

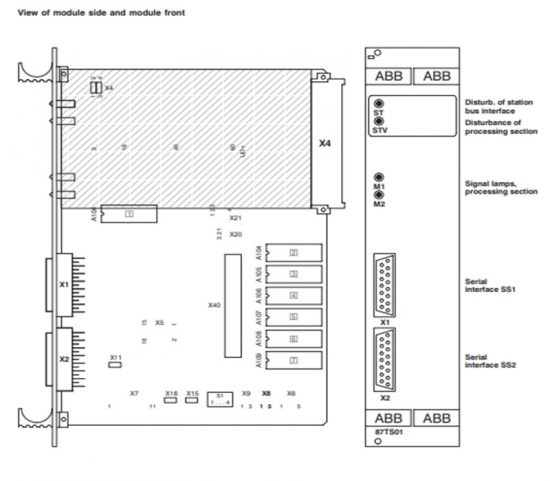

Design of the module：
The module essentially consists of:
-Station-bus interface
-Processing section
Serial interface in accordance with RS 232c or RS 422
Station-bus interface
The station-bus interface is responsible for conditioning thetelegrams to be received and transmitted through the stationbus interface.
The module uses two shared memories:
One 'receive shared memory' for the telegrams to be receivedand one 'send shared memory' for the telegrams to be sentThe use of a standard station-bus interface limits the numberof receive telegrams that can be received at the same time toa maximum of 230,using addresses 0...229 of the receiveshared memory.
The number of send-location telegrams is limited to a maximum of 200 at addresses 0...199 of the send shared memoryThe exact number of receive or send-location telegrams isgiven in the application descriptions for the individual softwareversions.
The entire data exchange taking place between station-businterface and processing section is handled by the sharedmemories.
Processing section
Technical features are described in the relevant applicationdescriptions for the individual software versions.
