3BSE069054R1 ABB DI828 S800 Digital Input Module

  • product orgin:

    Sweden

  • brand:

    ABB
  • product details


3BSE069054R1 ABB DI828 S800 Digital Input Module

  • The DI828 is a 16-channel digital input module designed for the S800 I/O system, supporting both 120 V AC and DC input signals. It offers an AC input voltage range of 77–130 V, with an input current of 8.5 mA at 120 V AC. For DC operation, the voltage range is 75–130 V, with an input current of 2.4 mA at 120 V DC. Each input channel is individually isolated, and includes current limiting components, EMC protection, an input status LED, optical isolation, and an analog filter to ensure stable and reliable signal processing.
  • The module also includes built-in voltage supervision functions. Channel 1 can be configured to monitor the voltage supply for channels 2–8, while channel 16 can supervise channels 9–15. If voltage supervision is active and the supply voltage to channel 1 or 16 is lost, a channel error is triggered, the warning LED illuminates, and the fault signal is made available via the ModuleBus. This supervision function can be enabled or disabled through parameter settings; when disabled, channels 1 and 16 operate as standard digital input channels.
  • Additionally, the input channels support configurable digital filtering, with selectable filter times of 1, 2, 4, and 8 ms. This feature effectively suppresses short noise pulses while allowing valid longer signals to pass through. The DI828 is compatible with the Extended MTU TU851, which provides two connection terminals per channel for flexible and convenient wiring.

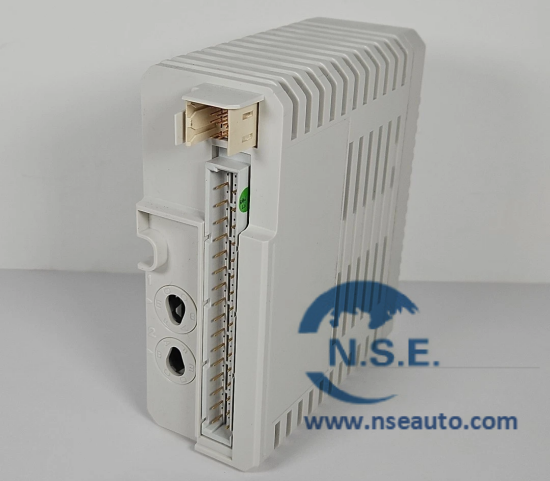

Picture of DI828
