Bently Nevada
TSI SYSTEM Bently Nevada 106765-07 Bently Nevada Interconnect Cable

106765-07 Bently Nevada Interconnect Cable


  • product orgin:

    USA
  • brand:

    Bently Nevada
  • product details


106765-07 Bently Nevada Interconnect Cable

  • Product Type: A single-channel shielded extension cable. Its core function is to connect the eddy current probe and proximitor, enabling low-loss transmission of high-frequency excitation signals and shaft displacement/vibration induction signals between them. It also supplies the probe with operating power from the proximitor, serving as the "intermediate transmission link" for the signal chain of the entire monitoring system.
  • Specifications: The cable length is 7.62 meters (25 feet). Conductors are made of multi-strand tinned copper to reduce signal transmission loss. The insulation layer uses oil-resistant and temperature-resistant fluoropolymer material, with an outer layer wrapped in a tinned copper braided shield (shielding effectiveness ≥85dB) to effectively resist electromagnetic interference in industrial sites. The rated operating temperature ranges from -55℃ to +200℃, enduring equipment vibration and high/low temperature environments. Both ends are equipped with dedicated quick-connect connectors, which match the interfaces of corresponding probes and proximitors precisely, requiring no additional wiring.
  • Functional Features: The shield is grounded to further reduce the impact of external electromagnetic noise on signals and ensure a high signal-to-noise ratio for transmitted signals. The outer material is aging-resistant and chemical-resistant, adapting to oil, dust, and other harsh conditions in petrochemical, metallurgical, and similar industries. The flexible cable structure facilitates wiring and installation in narrow spaces of equipment. The connectors feature a sealed design with an IP65 protection rating, preventing moisture and dust from entering and affecting contact performance.
  • Application Scenarios: Widely used in monitoring systems for rotating equipment (e.g., steam turbines, compressors, gearboxes) in power, petrochemical, and metallurgical industries. It works with 5mm/8mm eddy current probes and proximitors to build a complete signal transmission chain for shaft vibration/axial displacement. This ensures stable transmission of mechanically collected signals from the front end to the proximitor, laying a reliable foundation for subsequent signal conditioning and monitoring.

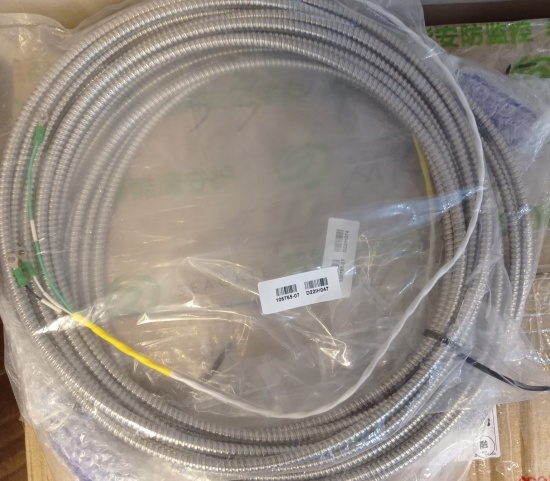

Picture of 106765-07
